Tuto Developer Guide

---

Acknowledgements

{ list here sources of all reused/adapted ideas, code, documentation, and third-party libraries -- include links to the original source as well }

---

Setting up, getting started

Refer to the guide Setting up and getting started.

---

Design

Architecture

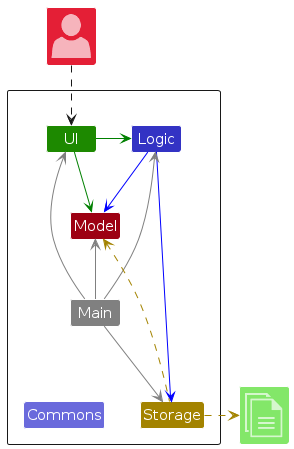

The Architecture Diagram given above explains the high-level design of the App.

Given below is a quick overview of main components and how they interact with each other.

Main components of the architecture

Main (consisting of classes Main and MainApp) is in charge of the app launch and shut down.

• At app launch, it initializes the other components in the correct sequence, and connects them up with each other.
• At shut down, it shuts down the other components and invokes cleanup methods where necessary.

The bulk of the app's work is done by the following four components:

• UI: The UI of the App.
• Logic: The command executor.
• Model: Holds the data of the App in memory.
• Storage: Reads data from, and writes data to, the hard disk.

Commons represents a collection of classes used by multiple other components.

How the architecture components interact with each other

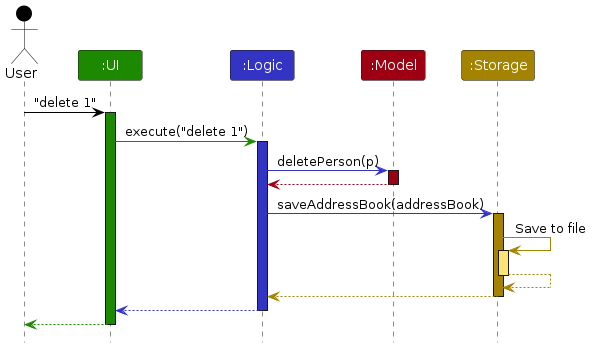

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command delete 1.

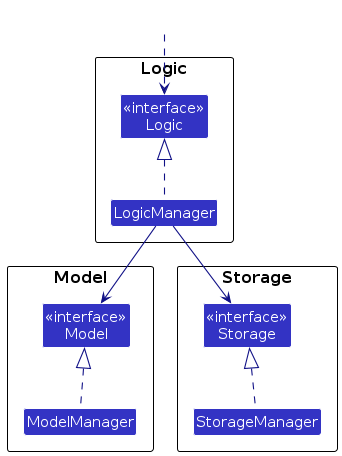

Each of the four main components (also shown in the diagram above),

• defines its API in an interface with the same name as the Component.
• implements its functionality using a concrete {Component Name}Manager class (which follows the corresponding API interface mentioned in the previous point.

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside component's being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

The sections below give more details of each component.

UI component

The API of this component is specified in Ui.java

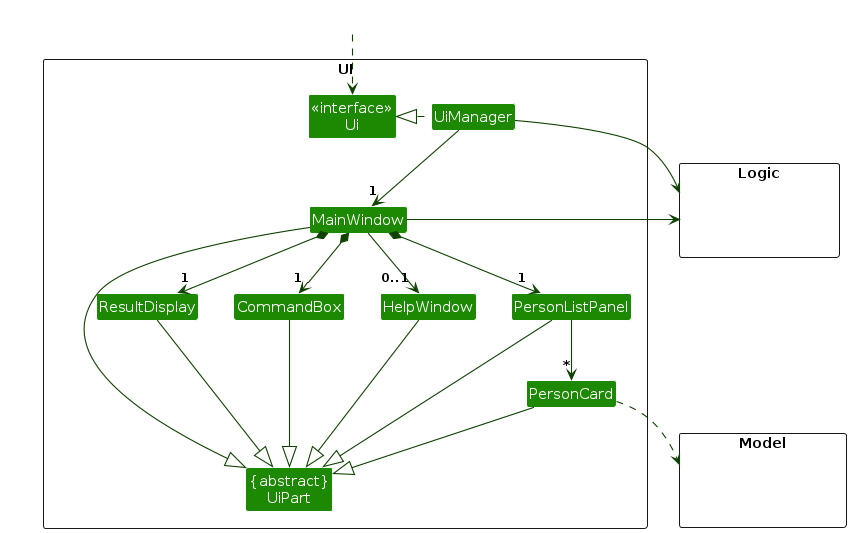

The UI consists of a MainWindow that is made up of parts e.g.CommandBox, ResultDisplay, PersonListPanel etc. All these, including the MainWindow, inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI.

The UI component uses the JavaFX UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

• executes user commands using the Logic component.
• listens for changes to Model data so that the UI can be updated with the modified data.
• keeps a reference to the Logic component, because the UI relies on the Logic to execute commands.
• depends on some classes in the Model component, as it displays Person object residing in the Model.

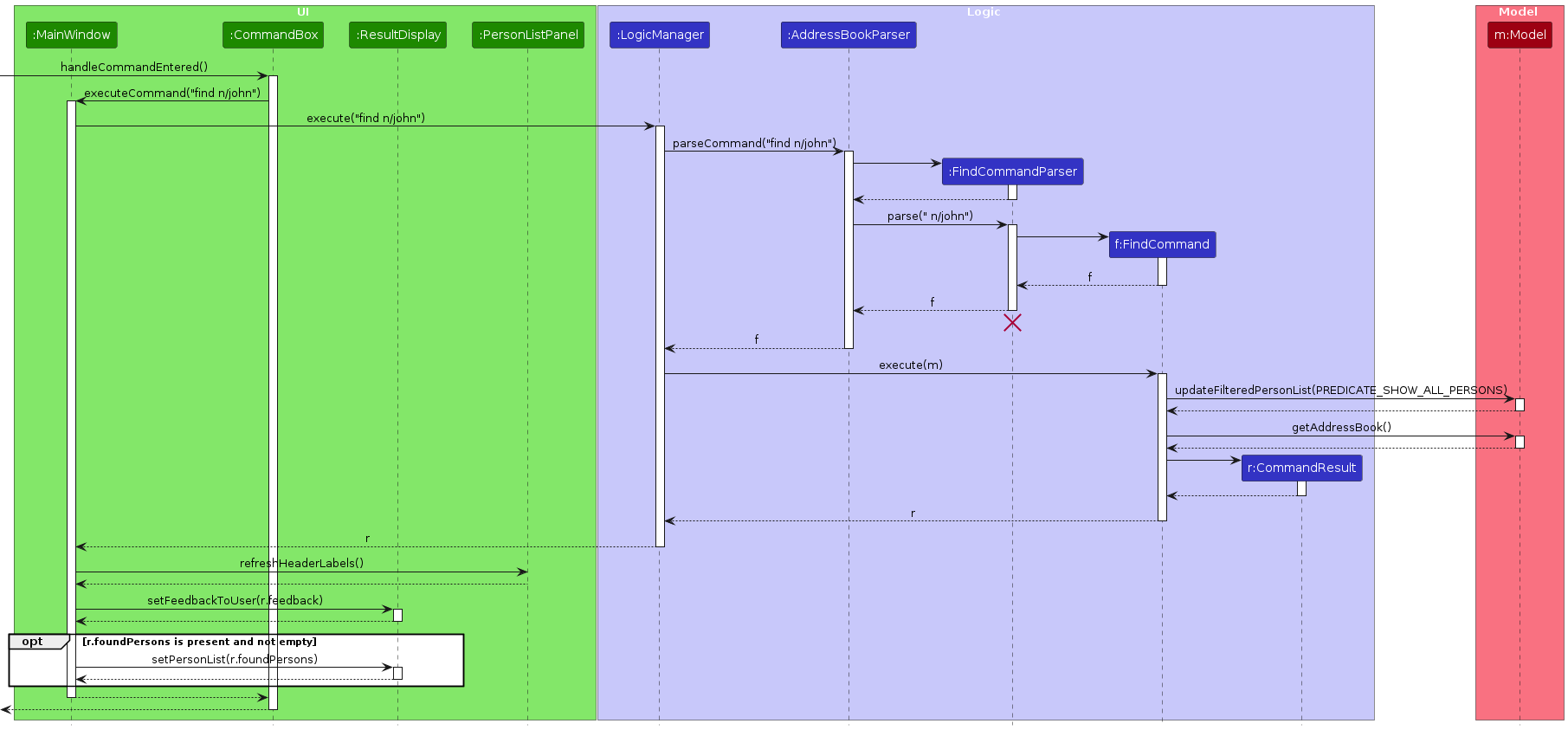

The following sequence diagram illustrates the interactions between the UI and Logic components when executing a Find name command attribute on the updated UI.

Logic component

API : Logic.java

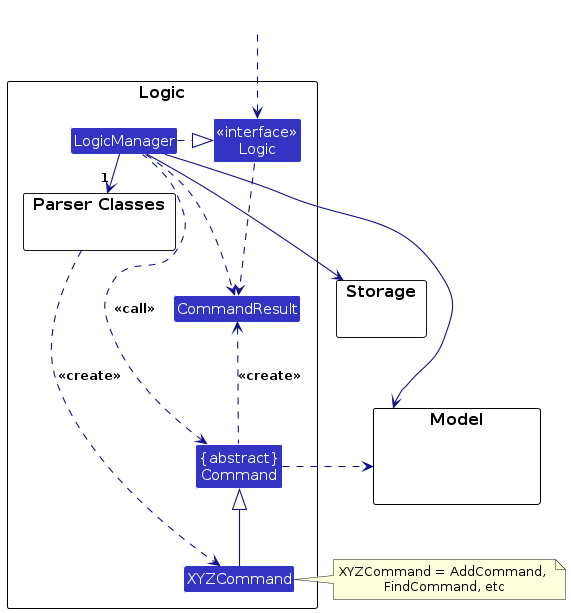

Here's a (partial) class diagram of the Logic component:

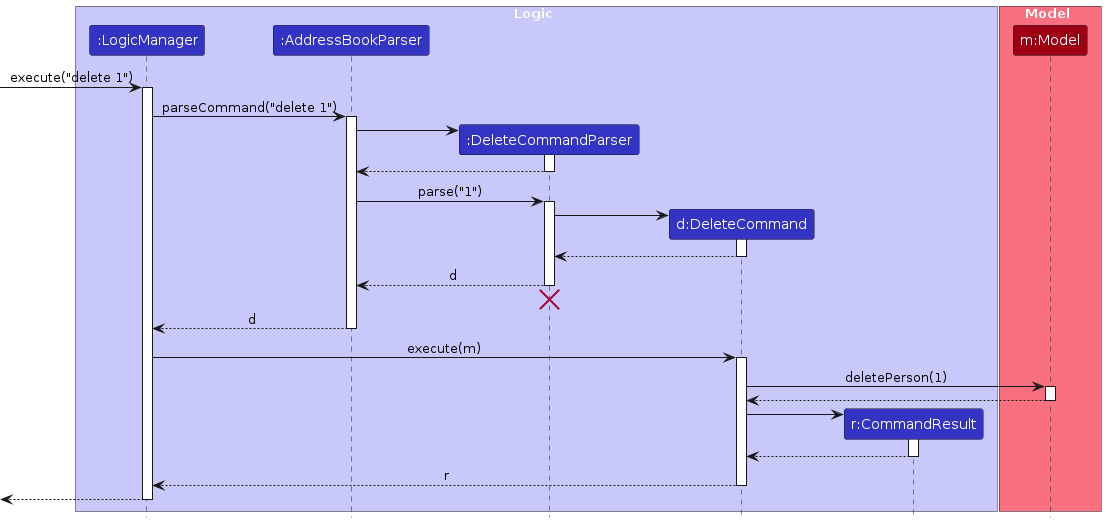

The sequence diagram below illustrates the interactions within the Logic component, taking execute("delete 1") API call as an example.

How the Logic component works:

1. When Logic is called upon to execute a command, it is passed to an AddressBookParser object which in turn creates a parser that matches the command (e.g., DeleteCommandParser) and uses it to parse the command.
2. This results in a Command object (more precisely, an object of one of its subclasses e.g., DeleteCommand) which is executed by the LogicManager.
3. The command can communicate with the Model when it is executed (e.g. to delete a person).
   Note that although this is shown as a single step in the diagram above (for simplicity), in the code it can take several interactions (between the command object and the Model) to achieve.
4. The result of the command execution is encapsulated as a CommandResult object which is returned back from Logic.

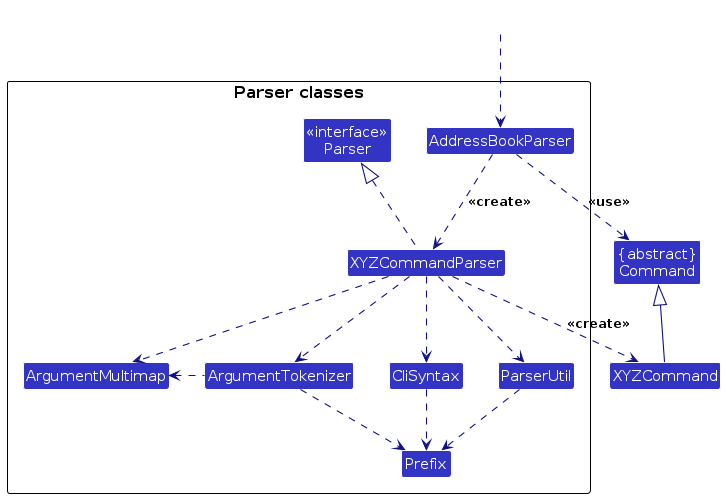

Here are the other classes in Logic (omitted from the class diagram above) that are used for parsing a user command:

How the parsing works:

• When called upon to parse a user command, the AddressBookParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., AddCommandParser) which uses the other classes shown above to parse the user command and create a XYZCommand object (e.g., AddCommand) which the AddressBookParser returns back as a Command object.
• All XYZCommandParser classes (e.g., AddCommandParser, DeleteCommandParser, ...) inherit from the Parser interface so that they can be treated similarly where possible e.g, during testing.

Find command

The find command allows users to filter the displayed person list based on the specified search criteria.

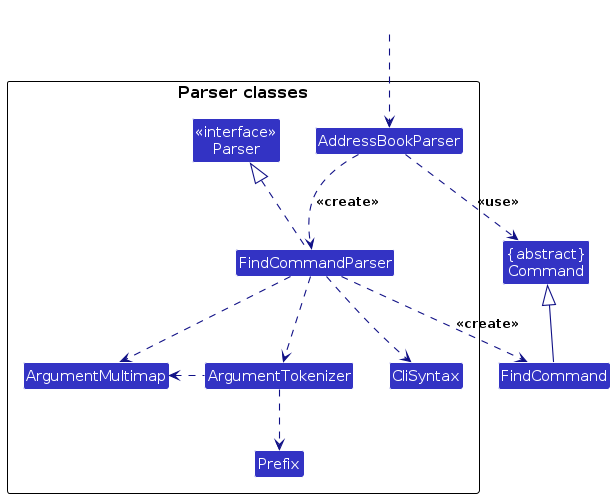

The diagram below shows the parser classes involved in handling the find command.

When the user enters a find command, AddressBookParser identifies the command word and creates a FindCommandParser.
FindCommandParser then parses the input arguments and constructs a FindCommand, which is returned as a Command object for execution.

Upon execution, FindCommand calls Model#updateFilteredPersonList(...) to update the displayed list according to the given predicate.

The find command can support different forms of filtering through different predicates, making the search functionality flexible and extensible.

Model component

API : Model.java

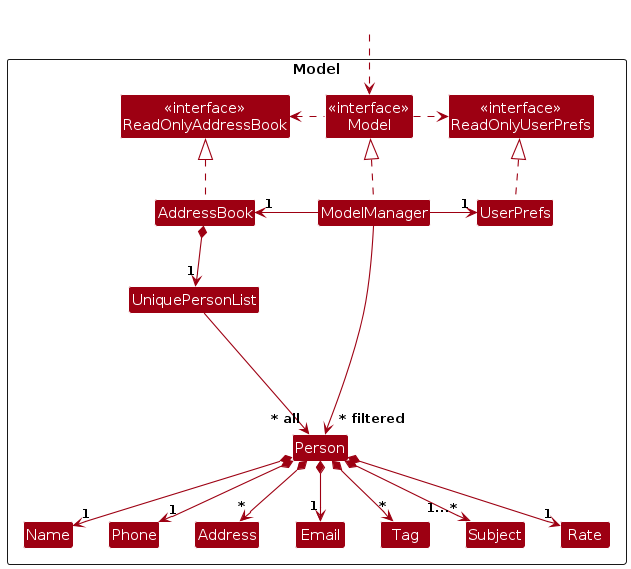

The Model component,

• stores the address book data i.e., all Person objects (which are contained in a UniquePersonList object).
• stores the currently 'selected' Person objects (e.g., results of a search query) as a separate filtered list which is exposed to outsiders as an unmodifiable ObservableList<Person> that can be 'observed' e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.
• stores a UserPref object that represents the user’s preferences. This is exposed to the outside as a ReadOnlyUserPref objects.
• does not depend on any of the other three components (as the Model represents data entities of the domain, they should make sense on their own without depending on other components)

Storage component

API : Storage.java

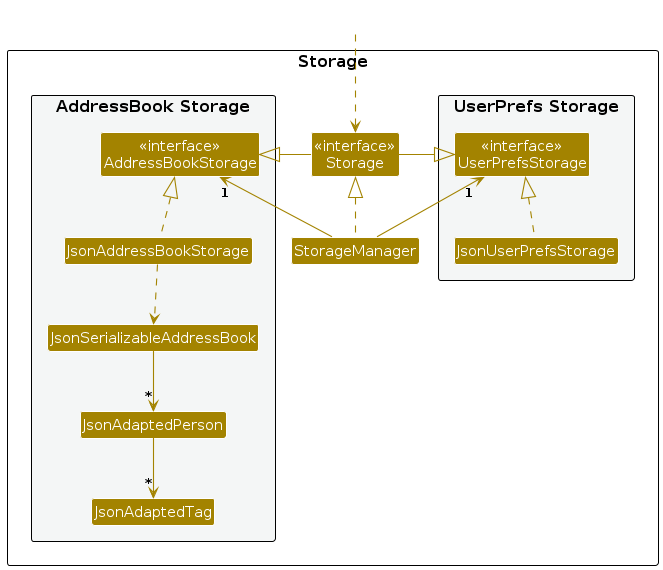

The Storage component,

• can save both address book data and user preference data in JSON format, and read them back into corresponding objects.
• inherits from both AddressBookStorage and UserPrefStorage, which means it can be treated as either one (if only the functionality of only one is needed).
• depends on some classes in the Model component (because the Storage component's job is to save/retrieve objects that belong to the Model)

Common classes

Classes used by multiple components are in the seedu.address.commons package.

---

Implementation

This section describes some noteworthy details on how certain features are implemented.

Adding a Tutor : add

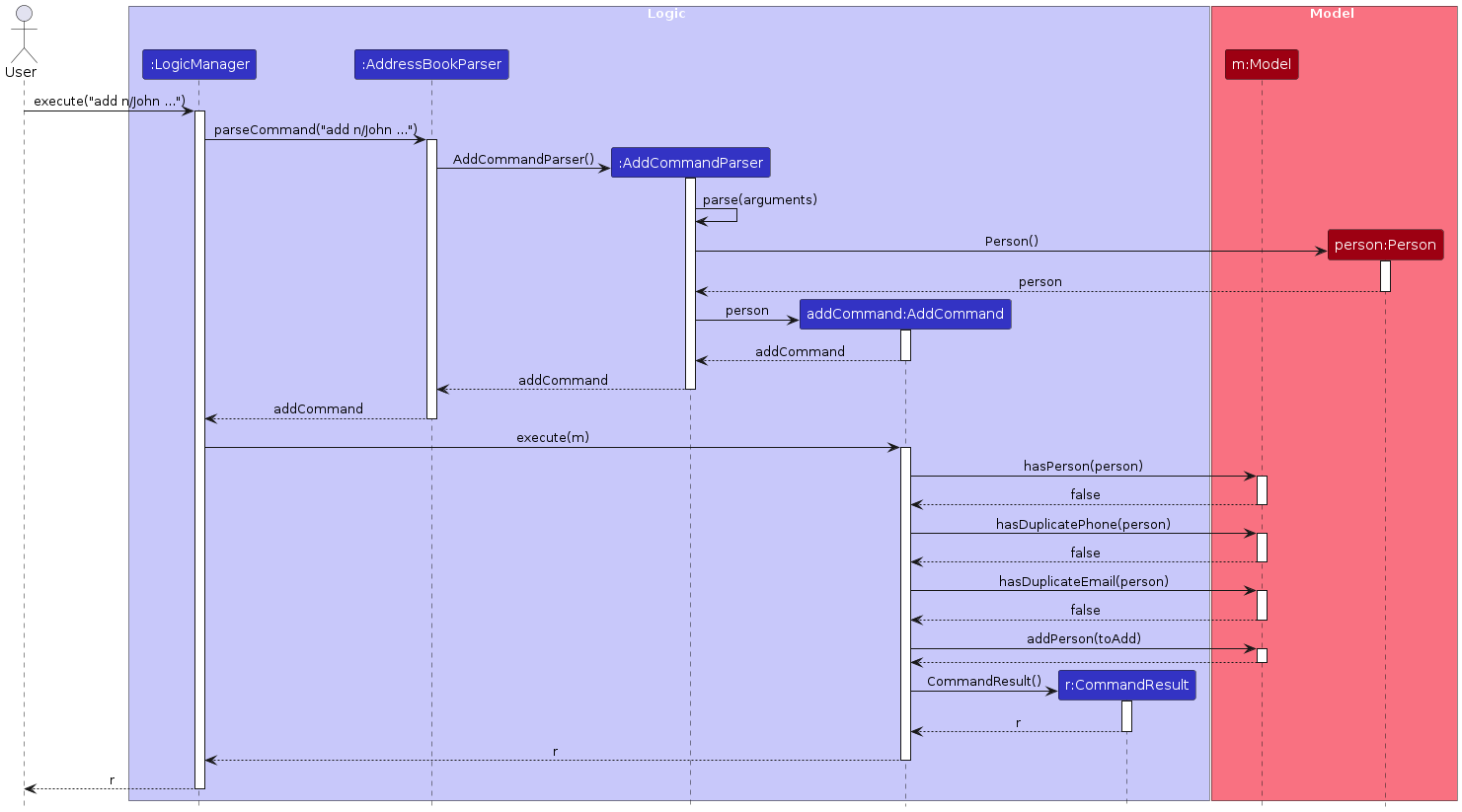

Adds a new tutor profile to Tuto. The sequence diagram below illustrates the interactions between the Logic and Model components during the execution of the add command.

The add command is processed in two main phases: parsing and execution. The input string from user is first parsed into an Person object, which is then wrapped in an AddCommand object and executed to update the Model object.

The sequence of interactions is as follows:

1. The user enters the add command with the correct arguments, which is received by LogicManager.
2. LogicManager calls AddressBookParser to parse the input.
3. AddressBookParser identifies the command word and delegates parsing to AddCommandParser.
4. AddCommandParser parses the arguments and constructs a Person object based on the given attributes stated in the arguments.
5. AddCommandParser creates an AddCommand object containing the Person.
6. The AddCommand is returned to LogicManager.
7. LogicManager executes the command by calling AddCommand#execute(Model).
8. AddCommand performs validation checks:
   • checks if the person already exists,
   • checks if the same phone and email already exists.
9. If all checks pass, the Person is added to the Model.
10. A CommandResult is created and returned to the user.

Alternative flows

• If the input format from user is invalid, a ParseException is thrown during parsing and the command object is not created.
• If the person already exists in the address book, a CommandException is thrown and the operation is aborted.
• If the phone or email already exists, a CommandException is thrown and the operation is aborted.

Uniqueness Constraints

To ensure data integrity, the application enforces uniqueness constraints on each Person.

Current Implementation

The uniqueness of a Person is determined by the following fields:

• Phone number
• Email address

Duplicate checks are performed in AddCommand and EditCommand before delegating to the model. If a duplicate is detected, a CommandException is thrown immediately with an appropriate error message.

If any of the following conditions are met:

• A person with the same phone number already exists
• A person with the same email address already exists

The operation is rejected and an appropriate error message is shown to the user.

Duplicate checks are performed in the following priority:

1. Phone number
2. Email address

This ensures that name conflicts are detected first, followed by contact information conflicts.

Design Considerations

Aspect: What defines a duplicate person

• Alternative 1 (current choice): Use phone number, and email address as uniqueness constraints

  • Pros: Prevents duplicate entries effectively and maintains clean data
  • Cons: May be restrictive in cases where users share names or contact details

• Alternative 2: Use full object equality

  • Pros: Simpler implementation
  • Cons: Allows duplicate entries with identical contact details

Class Diagram

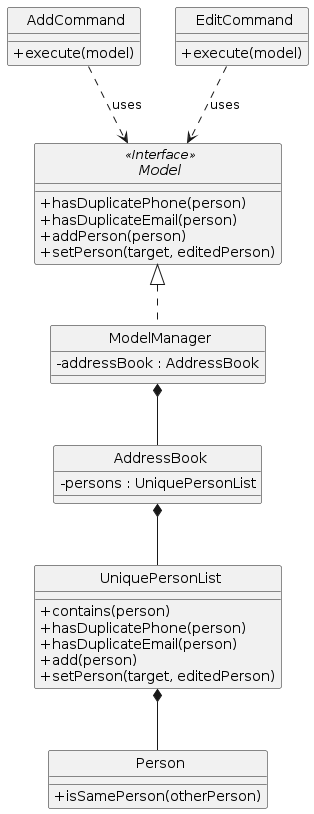

The following class diagram shows the key classes involved in enforcing uniqueness constraints, and how they interact structurally.

AddCommand and EditCommand depend on the Model interface to perform duplicate checks. ModelManager implements Model and delegates to AddressBook, which contains a UniquePersonList that stores all Person objects.

Sequence Diagram

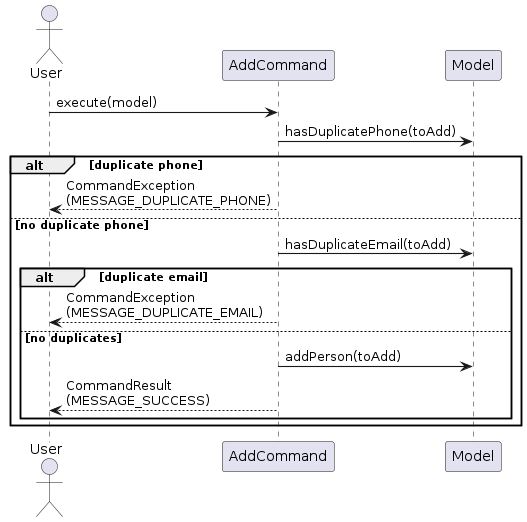

The following diagram illustrates how duplicate checks are performed during an add or edit operation:

[Proposed] Undo/redo feature

Design considerations:

Aspect: How undo & redo executes:

• Alternative 1 (current choice): Saves the entire address book.

  • Pros: Easy to implement.
  • Cons: May have performance issues in terms of memory usage.

• Alternative 2: Individual command knows how to undo/redo by itself.

  • Pros: Will use less memory (e.g. for delete, just save the person being deleted).
  • Cons: We must ensure that the implementation of each individual command are correct.

{more aspects and alternatives to be added}

[Proposed] Data archiving

{Explain here how the data archiving feature will be implemented}

---

Documentation, logging, testing, configuration, dev-ops

• Documentation guide
• Testing guide
• Logging guide
• Configuration guide
• DevOps guide

---

Appendix: Requirements

Product scope

Target user profile:

• has a need to manage multiple freelance tutor contacts for their children
• wants a structured way to store tutor information (subjects, rates, availability)
• prefer desktop apps over other types
• prefers typing to mouse interactions
• is reasonably comfortable using CLI apps

Value proposition: Our address book allows Parents to easily manage a stored list of manually added freelance Tutors contacts for their Children’s subjects. The address book will present useful data in a structured format for Parents to make decisions of a Tutor for their Children.

User stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

{More to be added}

Use cases

(For all use cases below, the System is the Tuto and the Actor is the Parent, unless specified otherwise)

Use Case: U1. View all Tutor Contacts

Preconditions: Tuto is running

MSS:

1. Parent requests to list all tutor contacts
2. Tuto returns a list of all stored Tutor Profiles Use Case ends

Extensions

• 1a. Wrong Command given

  • 1a1. Tuto returns an error message

    Use case ends

  • 2a. The contact list is empty

  • 2a1. Tuto displays a message indicating no contacts have been added yet.

    Use case ends.

Use Case: U2. View a specific Tutor Contact

Preconditions: Tuto is running

MSS:

1. Parent requests to list all Tutor Contacts (U1)
2. Parent enters the command specifying the Index
3. Tuto displays the tutor's full profile Use Case ends

Extensions

• 2a. The provided index is invalid

  • 2a1. Tuto shows an error message

    Use case ends

• 2b. The command format is invalid

  • 2b1. Tuto shows an error message.

    Use case ends

Use Case: U3. Delete a Tutor from Tuto

Preconditions: Tuto is running and Tuto contains at least one Tutor Contact

Guarantees: The Tutor Contact is removed from storage upon successful completion.

MSS:

1. Parent requests to list all Tutor Contacts (U1)
2. Parent enters the delete command specifying the Index of the tutor.
3. Tuto deletes the contact
4. Tuto displays a confirmation message that the Tutor Contact has been deleted successfully Use Case ends

Extensions

• 2a. The provided index is invalid.

  • 2a1. Tuto shows an error message.

    Use case ends

• 2b. The command format is invalid

  • 2b1. Tuto shows an error message.

    Use case ends

Use Case: U4. Add a Tutor Profile

Preconditions: Tuto is running

Guarantees: If MSS completes until step 3, Tutor contact will be added to Tuto’s storage

MSS:

1. Parent enters the add command specifying the required Parameters
2. Tuto validates the parameters.
3. Tuto adds the Tutor Profile to the contact list
4. Tuto displays a success message on the addition Use Case ends

Extensions

• 2a. One or more compulsory Parameters are missing

  • 2a1. Tuto returns an error message indicating the missing fields.

    Use case ends

• 2b. One or more Parameters are in an invalid format

  • 2b1. Tuto returns an error message indicating the constraint violation.

    Use case ends

• 2c. A tutor with the same details (Duplicate) already exists.

  • 2c1. Tuto shows a duplicate entry error message.

    Use case ends

Use Case: U5. Search for Tutors by Subject

Preconditions: Tuto is running

Guarantees: If MSS completes until step 3, Tuto displays all tutors in the contact list with matching subjects

MSS:

1. Parent enters the find command specifying a Subject keyword
2. Tuto validates the entered details
3. Tuto searches and displays a list of tutors matching the subject. Use Case ends

Extensions

• 2a. The command format is invalid

  • 2a1. Tuto shows an error message.

    Use case ends

• 3a. No tutors found in contacts list matching the keyword

  • 3a1. Tuto shows a message indicating no results found.

    Use case ends

Use Case: U6. Edit a Tutor Profile

Preconditions: Tuto is running and Tuto contains at least one Tutor Contact

Guarantees: If MSS completes until step 4, the Tutor Contact will be updated in Tuto's storage.

MSS:

1. Parent requests to list all Tutor Contacts (U1).
2. Parent enters the edit command, specifying the Index of the tutor and the Parameters to update.
3. Tuto validates the index and the new parameters.
4. Tuto updates the Tutor Profile
5. Tuto displays the updated details of the tutor. Use Case ends

Extensions

• 3a. The provided Index is invalid (e.g., 0, negative, or out of bounds).

  • 3a1. Tuto shows an error message.

    Use case ends

• 3b. The provided Parameters violate validation rules.

  • 3b1. Tuto returns an error message indicating the invalid format.

    Use case ends

• 3c. The update results in a Duplicate Entry of an existing Tutor Contact.

  • 3c1. Tuto shows a duplicate entry error message.

    Use case ends

Non-Functional Requirements

1. The system should work on mainstream operating systems　such as Windows, Linux, macOS as long as Java 17 or above installed.
2. The system should be able to load and display up to 1000 Tutor Profiles within 5 seconds of application start up.
3. A user with above average typing speed should be able to perform common tasks (such as adding or editing tutor profiles) faster using commands and flags than using the mouse.
4. The system should respond to user commands within 1 second for typical usage, excluding file loading and saving operations.
5. The system should handle invalid Flags, Indices, or Parameters gracefully by displaying a clear error message instead of crashing.
6. The text file containing tutor profile data should be transferable and human-readable for portability across different machines.
7. The application should be usable without an internet connection.
8. The application should not require an installer and should run from a single directory without external dependencies beyond Java 17.
9. The application should be packaged into a single JAR file to simplify distribution and testing.

Glossary

• Command: The entire line of text entered by the user (containing the command word, flags, and parameters) to execute a specific task.
• Command Word: The first word of a Command (e.g., add, edit, delete) that identifies the action to be performed.
• Flag: A specific prefix (e.g., /n, /p, /e) used to identify the type of data following it.
• Human-readable: A file format (like JSON or Text) that allows data to be read and edited using a standard text editor, without Tuto.
• Index: The number displayed next to a tutor's name in the contact list (e.g., the 3 in 3. John Doe). Used to select a specific tutor for commands like edit or delete.
• JAR File: The file format used to distribute Tuto, allowing it to run on any computer with Java installed without a setup wizard.
• Parameter: The specific information provided after a Flag (e.g., John is the parameter for /n).
• Subject: The academic discipline a tutor teaches (e.g., Math, Physics).
• Tutor Profile: The complete set of data (Name, Phone, Email, etc.) stored for one specific tutor.

---

Appendix: Instructions for manual testing

Given below are instructions to test the app manually.

Launch and shutdown

1. Initial launch

   1. Download the jar file and copy into an empty folder
   2. Double-click the jar file Expected: Shows the GUI with a set of sample contacts. The window size may not be optimum.

2. Saving window preferences

   1. Resize the window to an optimum size. Move the window to a different location. Close the window.
   2. Re-launch the app by double-clicking the jar file.
      Expected: The most recent window size and location is retained.

3. { more test cases …​ }

Deleting a person

1. Deleting a person while all persons are being shown

   1. Prerequisites: List all persons using the list command. Multiple persons in the list.

   2. Test case: delete 1
      Expected: First contact is deleted from the list. Details of the deleted contact shown in the status message. Timestamp in the status bar is updated.

   3. Test case: delete 0
      Expected: No person is deleted. Error details shown in the status message. Status bar remains the same.

   4. Other incorrect delete commands to try: delete, delete x, ... (where x is larger than the list size)
      Expected: Similar to previous.

2. { more test cases …​ }

Saving data

1. Dealing with missing/corrupted data files

   1. {explain how to simulate a missing/corrupted file, and the expected behavior}

2. { more test cases …​ }
